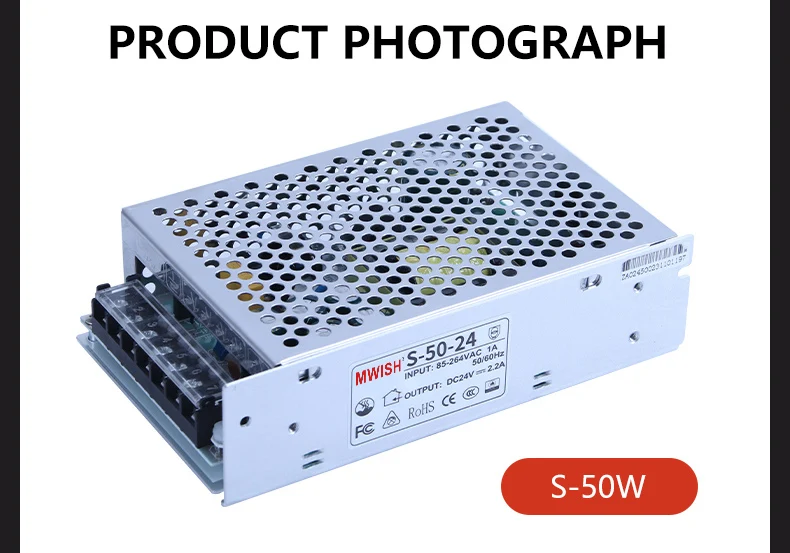

Adjustable DC Power Supply Module 24V 2.1A 50W S-50-24 for LED Driver and Electronic Projects
- Home delivery all over the country.
- Quality Product
- Cash On Delivery Available
- Delivery Charge Inside Dhaka 70 TK
- Delivery Charge Outside Dhaka 120 TK
Have question about this product ? please call
Delivery Charge
ডেলিভারি চার্জ : ঢাকার ভিতরে 70 টাকা

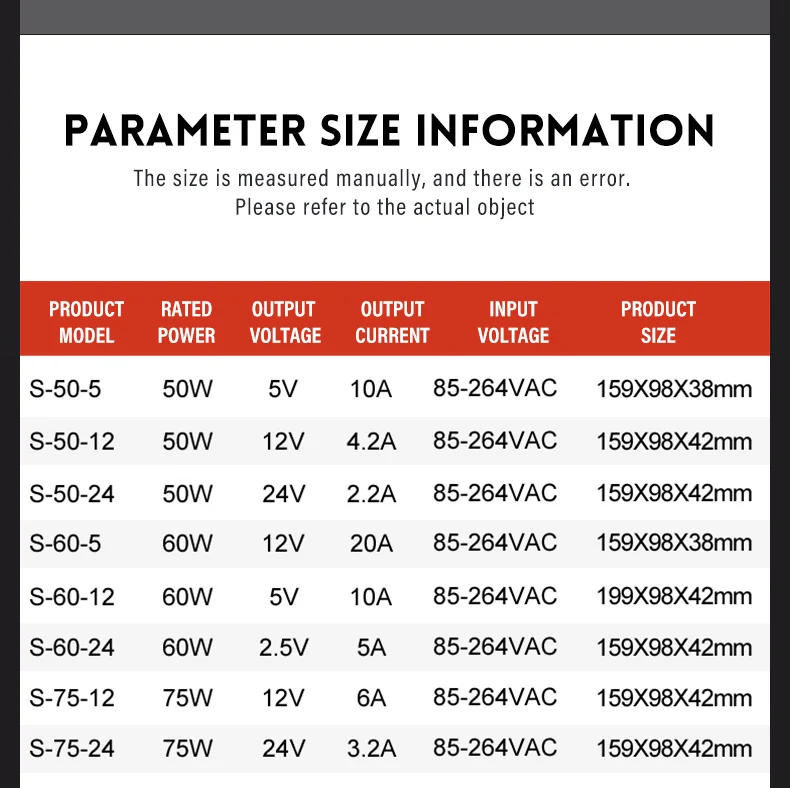

| Product Name | 50W Single Output Switching Power Supply |
| Brand Name | MWISH |
| Model Number | S-50-24 |
| Output Rated Power | 50W |
| Output DC Voltage | 24V |
| Output Rated Current | 2.1A |
| Output Current Range | 0～2.1A |
| Output Ripples And Noise | 120mVp-p |
| Output Voltage Adjustable Range | 9.8～14.4V |
| Output Voltage Accuracy | ±3.0% |
| Output Linear Adjustment Rate | ±0.5% |
| Output Load Adjustment Rate | ±0.5% |
| Output Starting Rising Time | 1500ms,25ms/230VAC at full load |
| Output Hold-up Time(Typ.) | 16ms/230VAC |
| Input Voltage Range | 100～240VAC |
| Input Frequency Range | 47～63Hz |
| Input Efficiency(Typ.) | 85% |
| Input AC(Typ.) | 1A/115VAC |
| Input Surge Current(Typ.) | Cold Boot 48A/230VAC |
| Input Leak Current | ＜2mA/240VAC |

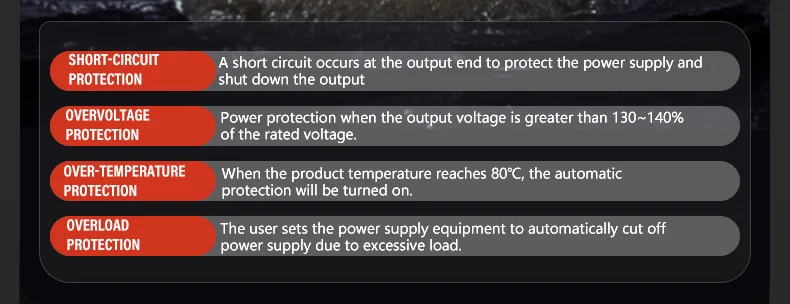

| Overload Protection | Rate Output Power 110～140% |
| Protection Mode:Hiccup mode, automatically recovered after abnormal conditions are removed | |
| Overvoltage Protection | 13.8～16.2V |
| Protection Mode:Turn off the output voltage and restart to restore | |
| Operating Temperature | -25～+70°C |
| Operating Humidity | 20～90%RH,non-condensing |
| Operating Temperature,Humidity | -40～+80°C,10-95%RH,non-condensing |
| Temperature Coefficient | ±0.03%/°C(0～50°C) |
| Vibration Resistance | 10～500Hz,5G 10mins/period, X、Y 、Z have 60mins separately |
| Overvoltage Grade | Ⅲ；According to EN61558,EN50178,EN60664-1,EN62477-1；Altitude up to 2000 meters |
